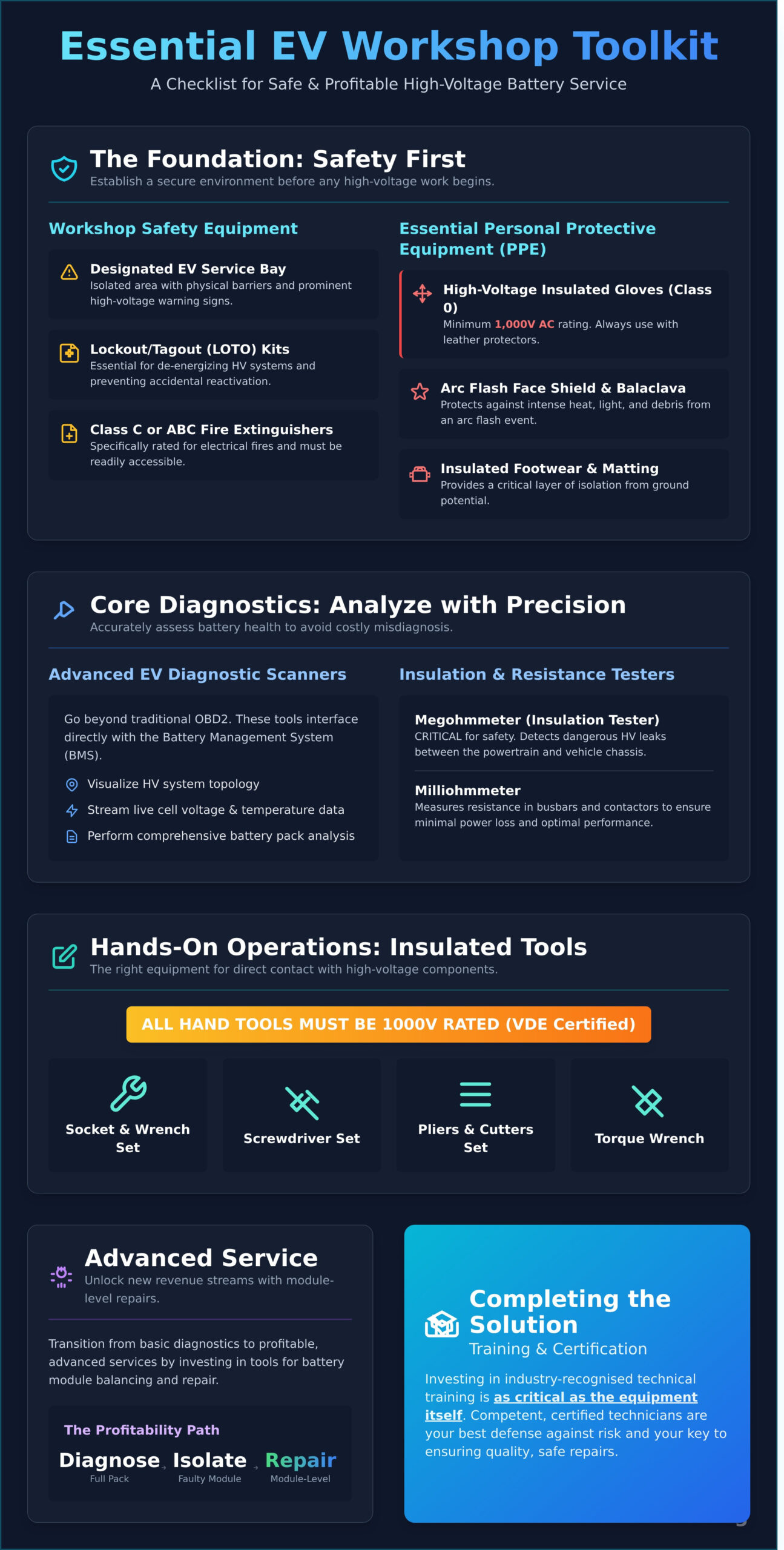

Essential EV Battery Service Tools: A Complete Workshop Checklist

The proliferation of electric vehicles on Singapore’s roads represents a pivotal shift in the automotive industry, creating both substantial opportunities and complex challenges for workshops. Navigating this transition requires more than just ambition; it demands a strategic investment in specialized capabilities and advanced equipment. Many workshop owners are rightly concerned about ensuring technician safety during high-voltage procedures, differentiating between essential and non-essential investments, and securing a positive return on investment. To address these critical concerns, we have developed a comprehensive guide.

This checklist details the essential ev battery service tools required to establish a safe, compliant, and highly profitable EV battery service division within your existing operational framework. Equipping your workshop with this high-quality equipment is the foundational step toward capturing a new, sustainable revenue stream and positioning your business as a leader in the advanced automotive ecosystem.

The Foundation: Workshop Safety and Personal Protective Equipment (PPE)

Servicing electric vehicles (EVs) introduces high-voltage (HV) systems that are fundamentally different from the 12V systems found in internal combustion engine (ICE) vehicles. The high-voltage systems, often exceeding 400 volts, are a core component of modern electric vehicle battery technology and present significant electrical hazards. Therefore, establishing a rigorous, safety-first protocol is not merely a recommendation but an operational necessity. Before a technician even reaches for specialized ev battery service tools, the workshop environment and personal protective measures must be secured to mitigate the risks of severe electrical shock, arc flash, and thermal events.

Workshop Safety Equipment

A safe working environment is the first line of defence. This begins with creating a designated and clearly demarcated EV service bay, isolated from general workshop traffic with physical barriers and prominent high-voltage warning signs. All equipment used within this zone must meet stringent safety standards.

• Insulated Tool Trolleys: Clearly marked trolleys designated exclusively for HV tools prevent cross-contamination with standard, non-insulated equipment.
• Lockout/Tagout (LOTO) Kits: These are critical for de-energizing a vehicle’s HV system and ensuring it cannot be accidentally reactivated during service.
• Appropriate Fire Extinguishers: Class C or ABC fire extinguishers must be readily accessible, as they are rated for the electrical fires that can occur with HV components.

Essential Personal Protective Equipment (PPE)

Equipping technicians with certified, high-voltage PPE is non-negotiable. This specialized gear provides direct protection from electrical contact and is as crucial as any diagnostic scanner or specific ev battery service tools. Every piece of PPE must be regularly inspected for integrity before use.

• High-Voltage Insulated Gloves: Class 0 gloves, rated for a maximum use of 1,000V AC, are the minimum requirement. They must always be worn with leather protectors to prevent punctures.
• Arc Flash Protection: An arc flash-rated face shield and a protective balaclava are essential to safeguard against the intense heat and light of an arc flash event.
• Insulated Footwear and Matting: Non-conductive safety boots and insulated rubber mats provide a critical layer of isolation from the ground, preventing the technician’s body from completing an electrical circuit.
• Insulated Rescue Hook: In a worst-case scenario, this non-conductive hook allows a colleague to safely pull an electrocuted technician away from the live HV source.

Core Diagnostics: Tools for EV Battery Health Analysis

Servicing an electric vehicle’s high-voltage battery requires a diagnostic approach far more advanced than traditional OBD2 scanning. Accurate analysis of the battery’s State of Health (SOH) and State of Charge (SOC) is paramount. Professional technicians must leverage specialized ev battery service tools to interpret complex data directly from the Battery Management System (BMS). This capability allows for the precise isolation of faulty cells or modules, preventing misdiagnosis and the unnecessary replacement of entire battery packs, a procedure that can cost tens of thousands of dollars.

Advanced EV Diagnostic Scanners

A modern workshop must be equipped with diagnostic scanners designed for the intricate systems of EVs. Essential features include dynamic topology mapping to visualize high-voltage system layouts and live data streaming to monitor individual cell voltages and temperatures in real-time. These tools read and clear EV-specific Diagnostic Trouble Codes (DTCs) and perform comprehensive battery pack analysis. For instance, the Autel MaxiSys Ultra EV provides technicians with these advanced capabilities, enabling detailed health checks and state-of-the-art system analysis.

Insulation and Resistance Testers

Safety and electrical integrity are non-negotiable in EV service. A megohmmeter (insulation tester) is a critical tool used to detect dangerous high-voltage (HV) leaks between the powertrain and the vehicle chassis. Concurrently, a milliohmmeter is used to measure the resistance of high-voltage contactors and busbars, ensuring minimal power loss and optimal performance. Operating these advanced diagnostic tools requires specialized knowledge, often acquired through dedicated EV technician training programs, to ensure safety protocols are rigorously followed during testing.

Battery Pack and Module Analyzers

When in-depth analysis is required, the battery pack may be removed for bench testing. Specialized battery pack and module analyzers are indispensable ev battery service tools for this process. They perform detailed tests on individual modules, measuring their precise capacity and internal resistance. This granular data allows technicians to identify weak or failing modules with certainty, enabling targeted replacement or balancing instead of a full pack overhaul. This level of precision is fundamental to providing cost-effective and reliable EV battery repairs. Explore advanced Autel EV diagnostic solutions.

For workshops or customers seeking a certified, third-party assessment of battery health, specialized independent testing services can provide an impartial report. As an example of how these services operate, you can learn more about EVdiagnostika.si.

Hands-On Operations: Insulated Tools and Battery Handling Equipment

Once diagnostic procedures are complete, technicians must engage directly with the high-voltage (HV) system. This phase of EV battery service demands a fundamental shift in tooling, where standard workshop equipment is not only inadequate but dangerously unsafe. The dual risks of lethal electrical shock from high-voltage direct current (DC) and severe physical injury from heavy components necessitate a specialized suite of equipment designed for both electrical insulation and mechanical support.

Essential Insulated Hand Tool Kit

A common and hazardous misconception is that standard tools with rubber or plastic grips offer sufficient protection. This is incorrect. Professional insulated tools are certified to international standards such as IEC 60900, guaranteeing protection up to 1000V. These are essential ev battery service tools for any workshop in Singapore serious about safety and compliance. A comprehensive kit must include:

• VDE or IEC 60900 Certified Tools: This includes a full range of insulated wrenches, socket sets, screwdrivers (Phillips, flathead, and Torx), and pliers (lineman’s, needle-nose, and diagonal cutters).
• Insulated Torque Wrenches: Applying precise torque is critical for HV connections. An insulated torque wrench ensures this can be done without creating a path for electrical current.
• Tool Inspection: Before every use, each tool’s insulation must be rigorously inspected for any nicks, cuts, or cracks that could compromise its integrity. Damaged tools must be removed from service immediately.

Battery Lifting and Handling Equipment

An EV battery pack is the single heaviest component in the vehicle, often exceeding 500 kilograms. Attempting to remove or manoeuvre it without purpose-built equipment is a significant operational and safety risk. Specialised hydraulic or electric battery lifting tables are engineered for this precise task. Key features include a low-profile design for easy positioning, a high lifting capacity, and a large, stable platform. Furthermore, adhering to established EV battery service safety standards requires using vehicle-specific support fixtures on the lifting table. These fixtures secure the pack, preventing any shifting or damage during removal, transport within the workshop, and reinstallation, thereby protecting both the technician and the high-value component.

Advanced Service: Battery Repair and Maintenance Tools

Moving beyond initial diagnostics into component-level repair is where automotive workshops can establish market leadership and unlock significant, profitable service opportunities. This advanced phase of EV maintenance requires a strategic investment in specialized ev battery service tools designed for intricate and high-stakes procedures. Equipping your facility with this professional-grade equipment is essential for delivering comprehensive, safe, and reliable battery repair services that meet manufacturer standards and customer expectations in the competitive Singapore market.

Battery Module Balancing and Charging

A primary cause of diminished EV range and performance is an imbalance between individual battery modules. A professional battery module balancer is a critical tool that equalizes the state of charge (SoC) across all cells, restoring the pack’s overall health and extending its operational lifespan. This is complemented by specialized chargers and dischargers that operate on the battery pack outside the vehicle. These systems allow for safe, controlled charging of individual modules or the entire pack during servicing, as well as controlled discharging for decommissioning or deep-level repairs in compliance with local environmental regulations.

Battery Pack Servicing Equipment

Maintaining the structural and thermal integrity of the battery pack is paramount for safety and longevity. This requires a dedicated set of equipment for opening, servicing, and resealing the high-voltage battery enclosure. Key tools in this category include:

• Leak Detection Kits: Utilising smoke or dye, these kits are essential for verifying the integrity of the battery pack’s seals after service, preventing moisture and contaminant ingress that could lead to catastrophic failure.
• Cooling System Service Tools: These tools facilitate the testing, flushing, and refilling of the battery’s liquid thermal management system, ensuring optimal operating temperatures are maintained.
• Specialized Sealants and Adhesives: Reassembling a battery pack requires OEM-approved sealants to restore its original Ingress Protection (IP) rating, guaranteeing protection against environmental factors.

By integrating these advanced ev battery service tools into your workshop’s ecosystem, you enhance your technical capabilities and position your business as a trusted expert in high-voltage battery maintenance. To explore a comprehensive range of IMI-accredited equipment and training, visit k-tech.sg to strengthen your workshop’s operational efficiency.

Completing the Solution: The Role of Technical Training and Certification

Investing in advanced workshop equipment is a critical first step towards establishing your workshop’s EV service capabilities. However, possessing the right tools is only half of the equation for success. The most advanced ev battery service tools are ineffective, and even dangerous, in untrained hands. True operational excellence and a strong return on investment are achieved only when sophisticated equipment is paired with proficient, certified technicians.

Working with high-voltage (HV) systems without specialized training exposes your business to severe risks, including catastrophic vehicle damage, life-threatening injury to staff, and irreparable harm to your workshop’s reputation. Conversely, a team that is professionally trained and certified inspires immense customer trust, justifying premium service offerings and securing your position as a market leader in the competitive Singapore automotive industry.

Why Standard Technician Skills Are Not Enough

The transition from internal combustion engines (ICE) to electric vehicles represents a fundamental paradigm shift in automotive technology. Standard mechanical expertise is insufficient for navigating the complexities of EV architecture. Specialized training is essential for:

• Understanding Unique EV Architecture: Gaining in-depth knowledge of high-voltage battery packs, electric motors, and thermal management systems.
• Learning De-Energization Procedures: Mastering the precise, vehicle-specific protocols required to safely isolate the HV battery before any service begins.
• Using Advanced Diagnostic Software: Developing proficiency in interpreting State of Health (SOH), State of Charge (SOC), and other critical battery data.
• Adhering to Strict Safety Protocols: Implementing rigorous safety measures at every stage of the repair process to protect both technicians and the vehicle.

What to Look for in an EV Training Program

To ensure your team receives a credible and comprehensive education, it is vital to select a training program built on globally recognized standards. A high-quality program should provide a balanced curriculum that combines foundational knowledge with practical application. Key attributes include:

• Accreditation from Recognized Bodies: Certification from an esteemed authority like the Institute of the Motor Industry (IMI UK) guarantees the training meets international industry standards.
• A Blend of Theory and Hands-On Practice: Effective learning combines classroom instruction on HV theory with practical experience using proper ev battery service tools and equipment in a controlled workshop environment.
• Courses Covering Key Competencies: A comprehensive pathway should cover essential modules, from HV safety awareness to advanced battery diagnostics and repair techniques.

K-Tech Auto Solution provides a complete ecosystem for workshop success, integrating world-class equipment with professional development. View K-Tech Auto Solution’s IMI-accredited EV technician courses to empower your team with the skills needed to excel.

Your Strategic Partner in Advanced EV Servicing

Mastering electric vehicle service demands a holistic approach that integrates advanced technology with uncompromising safety standards. A truly effective workshop is built not only on a foundation of certified PPE and high-voltage insulated tools but also on sophisticated diagnostic systems. Equipping your facility with the correct ev battery service tools is the critical first step, but integrating them into an efficient workflow powered by expert knowledge is what separates industry leaders from the competition.

As Singapore’s exclusive Autel distributor and an IMI UK accredited technical training academy, K-Tech Auto Solution provides the end-to-end support your business requires. We deliver more than just equipment; we provide integrated workshop solutions that enhance your operational efficiency and technical capabilities. To build a future-proof workshop ready for the complexities of modern vehicles, we invite you to request a consultation on equipping your workshop for advanced EV service.

Partner with us to confidently navigate the evolving automotive landscape and secure your workshop’s sustainable growth.

Frequently Asked Questions

Can I use my existing OBD2 scanner for professional EV battery diagnostics?

A standard OBD2 scanner is insufficient for professional EV battery diagnostics as it only accesses generic powertrain codes. Comprehensive EV service requires a specialized diagnostic tool capable of interfacing directly with the Battery Management System (BMS). These advanced scanners read proprietary data such as state-of-health (SOH), individual cell voltages, and thermal performance, which are critical for accurate fault identification and repair validation. Upgrading is a non-negotiable step for any workshop serious about EV service.

What are the absolute first tools I should buy to start offering EV services?

To establish a foundational capability for EV service, workshops must first invest in safety and diagnostic essentials. This initial procurement should include a complete set of 1,000V-rated insulated hand tools, Class 0 electrical safety gloves, and a CAT III or IV high-voltage multimeter. Alongside this safety equipment, a professional-grade EV diagnostic scanner is crucial for performing initial assessments and communicating with the vehicle’s high-voltage systems. These items form the cornerstone of a safe and competent operation.

Is official certification required to service EV batteries in Singapore?

While specific government mandates are still evolving, industry best practices and safety standards strongly necessitate formal certification for technicians. Qualifications such as the IMI International Level 3 Award in Electric/Hybrid Vehicle System Repair and Replacement are becoming the industry benchmark in Singapore. This accredited training ensures technicians possess the technical capabilities to handle high-voltage systems safely, mitigating operational risks and upholding professional service standards within the local automotive ecosystem.

How much should a workshop budget to become fully equipped for EV battery service?

For a workshop in Singapore, a comprehensive budget to become fully equipped for advanced EV battery service can range from S$50,000 to over S$150,000. This investment covers essential high-voltage safety gear, specialized diagnostic scanners, battery pack lifting tables, and advanced equipment like battery pack analyzers. The final cost is contingent on the desired level of service capability, from fundamental diagnostics to complex battery module repair and replacement. A strategic, phased investment is a viable approach.

What is the difference between an EV diagnostic scanner and a battery pack analyzer?

An EV diagnostic scanner communicates with the vehicle’s onboard systems, primarily the Battery Management System (BMS), to retrieve fault codes and live data streams. It diagnoses the battery’s condition as reported by the vehicle. In contrast, a battery pack analyzer is a specialized bench-testing tool used after the pack is removed. It directly tests individual modules for true capacity, internal resistance, and overall health, providing a granular assessment independent of the vehicle’s internal diagnostics.

How often do insulated hand tools need to be inspected or replaced?

Insulated hand tools demand rigorous inspection protocols to ensure technician safety. A visual inspection for damage-such as cuts, deep scuffs, or cracks in the insulation-must be conducted before every use. A formal, documented inspection should be performed at least annually. While there is no mandated replacement date, any tool showing compromised insulation must be immediately removed from service and replaced. Proper storage and care are essential to preserving the integrity of these critical ev battery service tools.
